Hawke Sport Optics

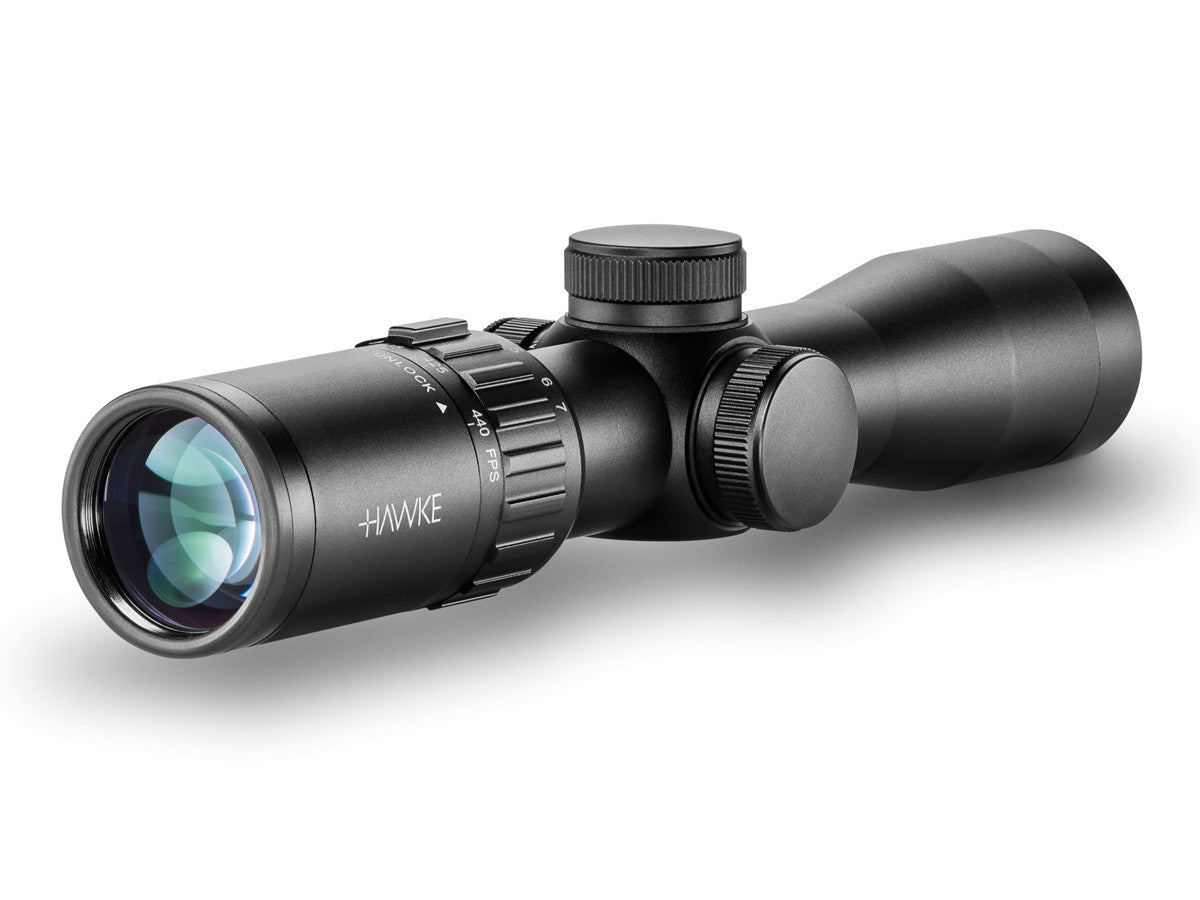

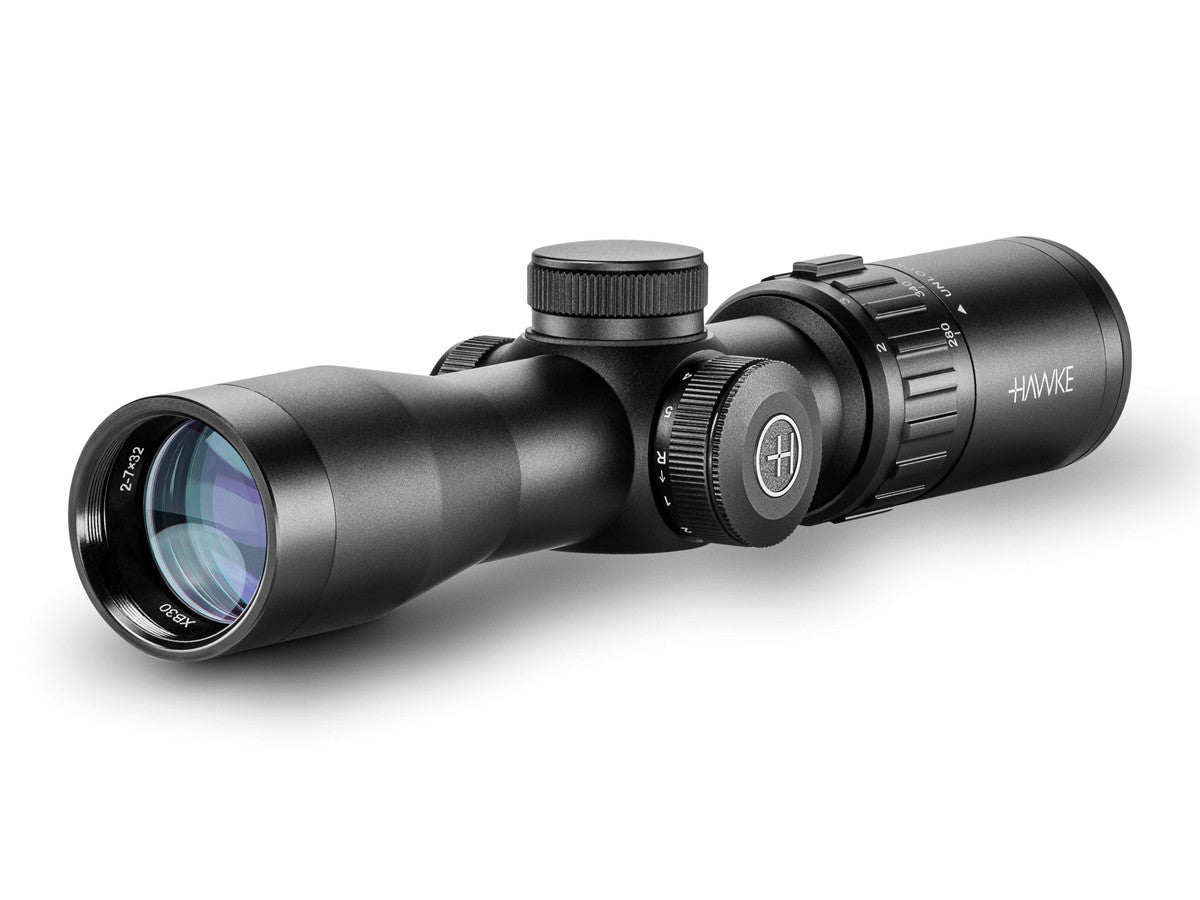

Hawke XB30 2-7x32 SR IR Crossbow Scope
Hawke XB30 2-7x32 SR IR Crossbow Scope
In stock
SKU:PY-A-12952
Couldn't load pickup availability
Questions before ordering?
Questions before ordering?
Not sure about compatibility or which product to choose? Contact us before ordering and we’ll be happy to help.
Shipping & returns
Shipping & returns
View our Shipping Policy and Refund Policy.
The Hawke XB30 2-7x32 SR IR Crossbow Scope uses System H2 optics to provide excellent results and extreme accuracy in challenging conditions. It is engineered specifically to stand up to the forces generated by the powerful crossbows of today, and it utilizes 11 layer fully multi-coated lenses for crystal-clear views and a generous 4 inches of eye relief.
Key features
- Learn how to pick the right scope
- 30mm aluminum mono-tube
- 32mm objective
- For crossbows from 280-440 FPS
- Low-profile capped turrets
- Fixed parallax at 50 yards
- FOV: 53.8-17.4 ft @ 100 yards
- 102mm (4") eye relief with .63"-.18" exit pupil
Full product information
Additional details

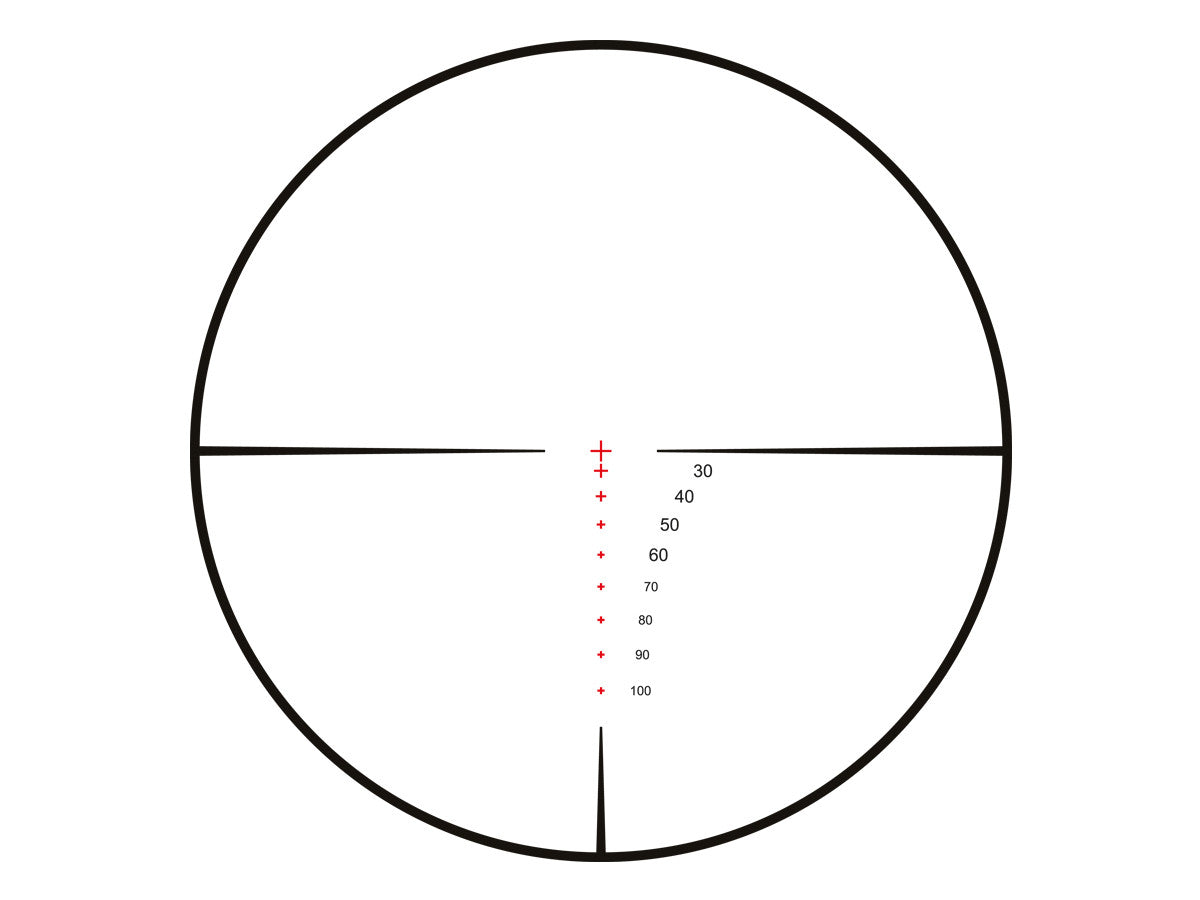

This scope uses a 30mm aluminum mono-tube and a 32mm objective lens, and it has low-profile capped turrets that adjust for elevation in a range of 215 MOA, and windage in a range of 195 MOA, both using 1/2 MOA increments. The vari-speed locking adjuster ring on the scope means that it can deliver customized results to different bows, and it can be calibrated best on bows that shoot from 280 to 440 FPS. The Hawke XB30 2-7x32 uses a second focal plane (SFP) XB30 SR reticle that features multiple aim point crosses for different distances, ranging from 20 yards at the center to 100 yards at the bottom, in intervals of 10 yards, as well as tapered posts on the sides and bottom. The aiming crosses can be illuminated in five levels of red or green using the adjustable dial. The package includes an instruction manual, a CR2032 battery, flip-up lens covers, and a lens cloth, and the scope is covered by the Hawke no-fault lifetime warranty.
Additional features
- Elevation adjustment range: 215 MOA, in 1/2 MOA increments
- Windage adjustment range: 195 MOA, in 1/2 MOA increments
- 9.4" long, 14.4oz
- System H2 optics
- 11 layer fully multi-coated lenses
- High torque zoom ring
- Fast focus eyebell
- Nitrogen purged
- Shockproof, fog proof, waterproof
- Hawke no-fault lifetime warranty
- Second focal plane (SFP) XB30 SR reticle
- 5 levels of red or green illumination with adjustable dial
Specifications
| Min Magnification | 2 x |
|---|---|
| Max Magnification | 7 x |
| Objective Size | 32 mm |
| Max FOV at 100 Yards | 53.8 ft |
| Focal Plane | Second (SFP) |
| Max Windage | 195 |
| Max Elevation | 215 |
| Click Value | 1/2 MOA |
| Click Adjustment Type | MOA |
| Parallax | Fixed |
| Weight | 0.9 lbs |
| Illumination | Red |
| Tube Diameter | 30 mm |
| Brand | Hawke Sport Optics |
